(Aerodynamic & Ballistic Advantage)

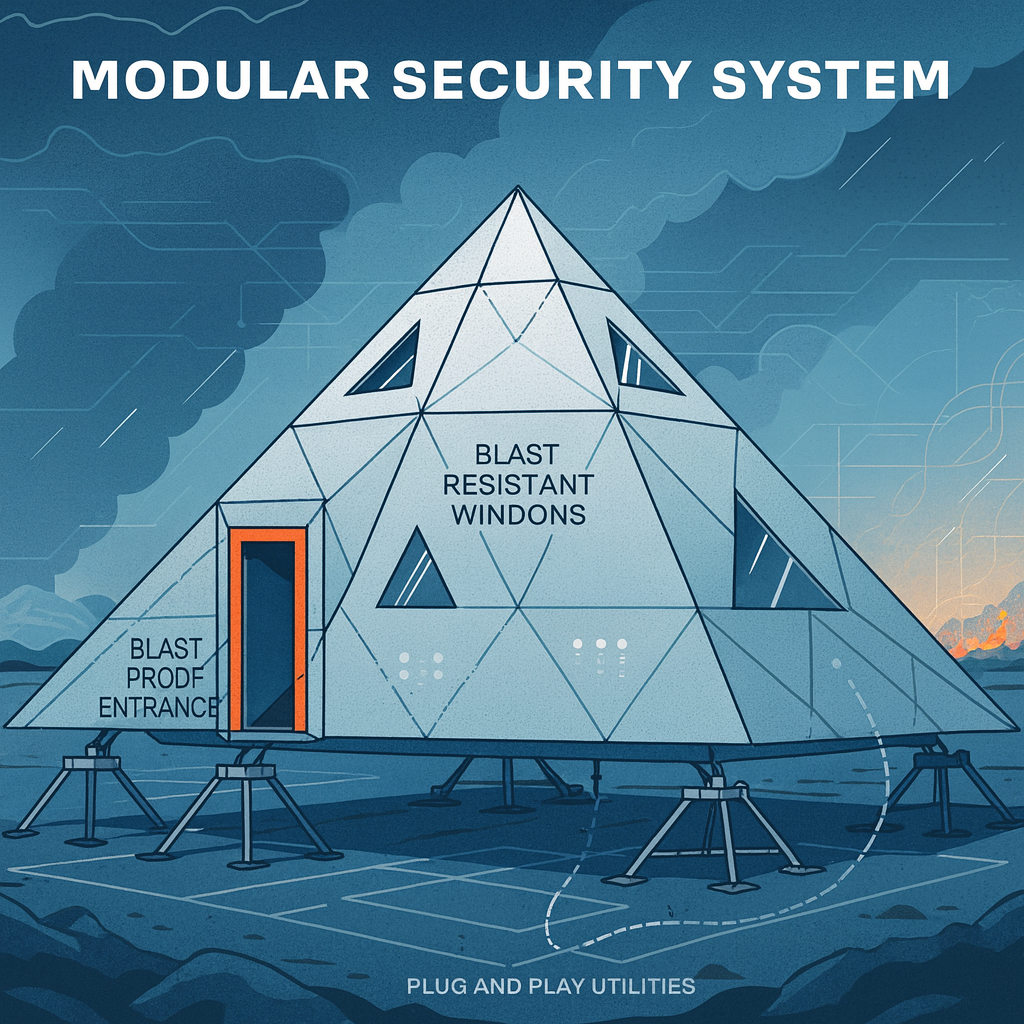

The primary advantage of the MSS geometry is that it refuses to take a "direct hit." Unlike traditional box-shaped shelters with flat vertical walls that must absorb the full force of a blast or wind load, the MSS utilizes a tetrahedral (pyramid) shape to deflect energy.

• The Physics: The angled walls ensure that shockwaves from explosions, high-velocity winds (such as tornadoes), or physical debris strike the structure at a glancing angle. This dissipates the energy around the structure rather than forcing the structure to resist the total load head-on.

• Blast Proven: This geometric advantage was validated at the Oregon Ballistic Test Range, where the slanted walls successfully deflected the initial blast force of 4 pounds of C4 explosives, leaving the structure intact.

The geometry is the key to the system's "no dig" installation capability. The triangular frame creates a continuous load path that channels vertical, lateral, and uplift forces directly down through the structural legs and into the ground anchors.

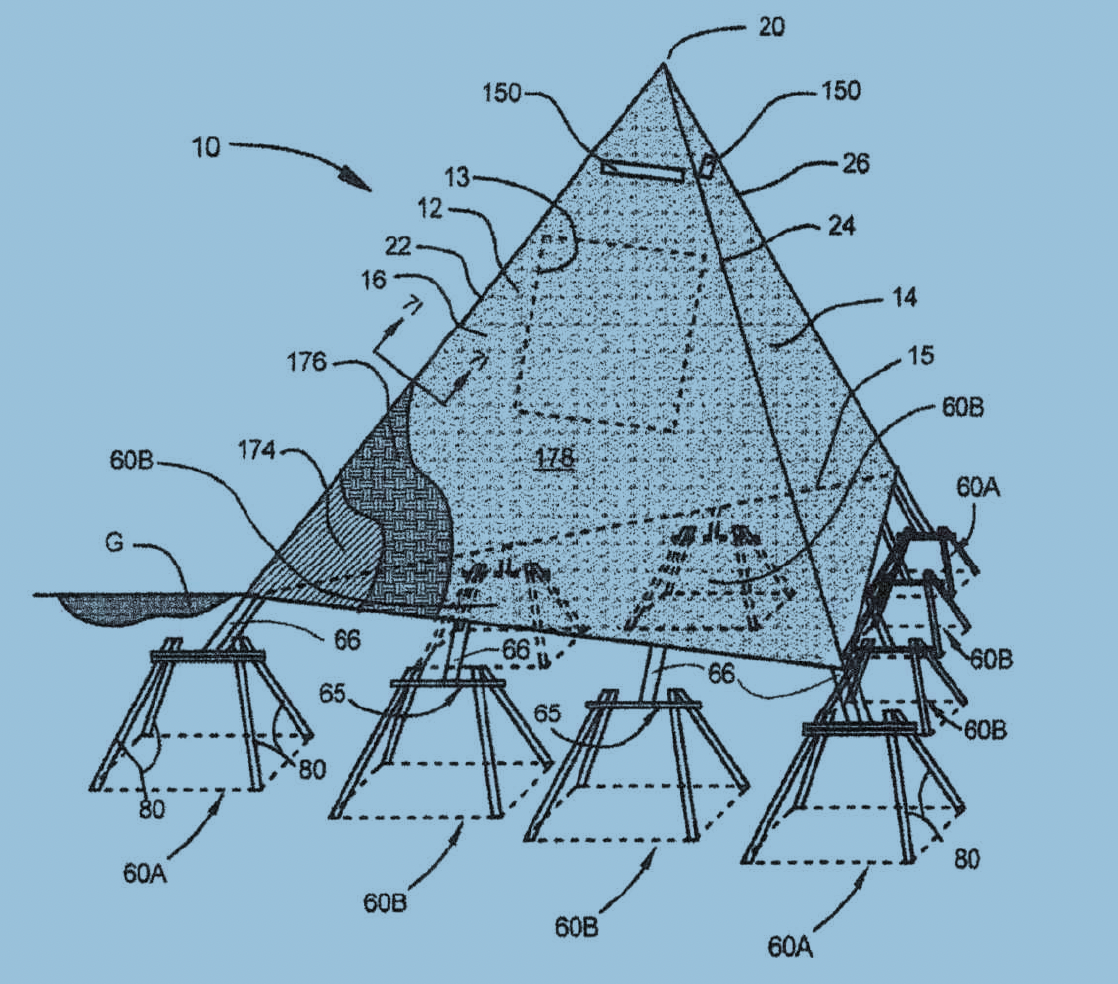

• The Mechanism: Because the sides are sloped, compressive forces are driven efficiently into the patented multi directional anchoring system using telescopic legs and deep earth rebar, rather than requiring a massive concrete slab to prevent overturning.
• Versatility: This geometric distribution of weight and force allows the MSS to be installed securely on difficult terrains such as sand, clay, or lava beds without the need for a permanent foundation.

(The "Diamond" Concept)

The MSS relies on the triangle, which is recognized as the strongest geometric shape in construction because it resists distortion.

• Structural Stiffness: Unlike a rectangle, which can collapse into a parallelogram under lateral stress (racking), a triangle maintains its form rigidly. Steve Morta compares this to the molecular structure of a diamond or the lattice work of power transmission towers, which are composed of triangles for maximum strength with minimal material.

• Deformation Resistance: This inherent stiffness ensures that the frame experiences minimal deformation under seismic activity or impact, maintaining the integrity of the protective shell

The geometry is "non-dimensional," meaning the core triangular module serves as a scalable building block that supports both expansion and concealment.

• Infinite Expansion: The equilateral triangular panels allow modules to be clustered or stacked effortlessly. A single pyramid can expand into a "double square pyramid" or a larger complex connected by tunnels without altering the structural logic.

• Stealth Profile: The low-profile, angled geometry makes the structure easy to camouflage. Unlike a vertical wall which casts a distinct shadow and radar signature, the MSS can be buried under sand dunes, built into a hillside, or disguised as a greenhouse, making it "invisible" to enemies or passersby.
